Installing Windows 8 Customer Preview on VMware Workstation 8

4th March 2012 3 By Simon

Last week Microsoft launched the Windows 8 Consumer Preview, rather than installing the preview onto any of my existing hardware I decided to give it a go on VMware Workstation 8 before trusting it to a dedicated machine.

As this is pre-release software Microsoft advise that there may well be bugs and application compatibility issues (another reason to give it a go on a VM) but generally speaking and after experiencing the Windows 7 preview when that released I am sure that this will be fairly straight forward (the Customer Preview can generally be viewed as a RC with this being close to what the RTM release would look like (unless there are some very serious bugs discovered during testing of this release)).

The recommended specs for running the Windows 8 Customer Preview are :-

1 GHz or faster processor
1 GB RAM for the 32-bit release or 2 GB RAM for the 64-bit release
16 GB available hard disk space for 32-bit or 20 GB for the 64-bit
DirectX 9 graphics device with WDDM 1.0 or higher driver

The Windows 8 Consumer Preview can be downloaded free from http://windows.microsoft.com/en-GB/windows-8/consumer-preview or via your Technet or MSDN subscriptions.

Follow the step by step process below to successfully install the Windows 8 customer preview on VMware Workstation 8.

Installing Windows 8 Consumer Preview

01

Run VMware Workstation 8 and click on the Create a New Virtual Machine

02

Choose Typical and click Next

03

Browse to the location of the ISO file and click Next

04

Choose Microsoft Windows and Windows 7, click Next

05

At this stage it’s a moot point to use the serial as there is a minor bug that causes the installation to fail if you try and use do unattended

06

Name the VM and click Next

07

Choose your disk size, I left this as default, click Next

08

Click Next

09

10

11

This was the error I mentioned earlier, it’s a simple fix but first you need to power down the VM.

12

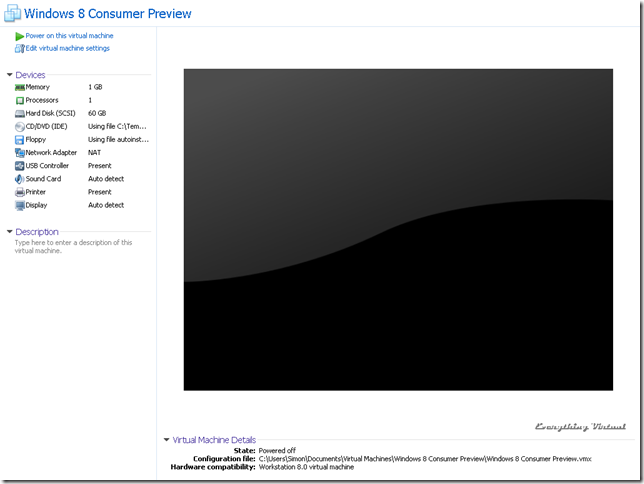

Click on the Edit Virtual Machine Settings tab

13

Browse down to the floppy drive

14

Click the Connect at power on button so that it’s empty, click OK

09

Start up the VM and go through the setup process again

10

15

Choose your default language settings

16

In my case it’s English (United Kingdom), click Next

17

Click Install now

18

Enter the product key here.

19

Click Next

20

Read through the License terms, you never know MS may well be giving away $10,000 to the first 100 people who actually bother to read them

21

Click I accept the license terms button and click Next

22

Choose your installation type

23

Choose the disk you want to install the OS on to, click Next

24

25

Name your PC, note the restrictions in orange above, click Next

26

Click Use express settings

27

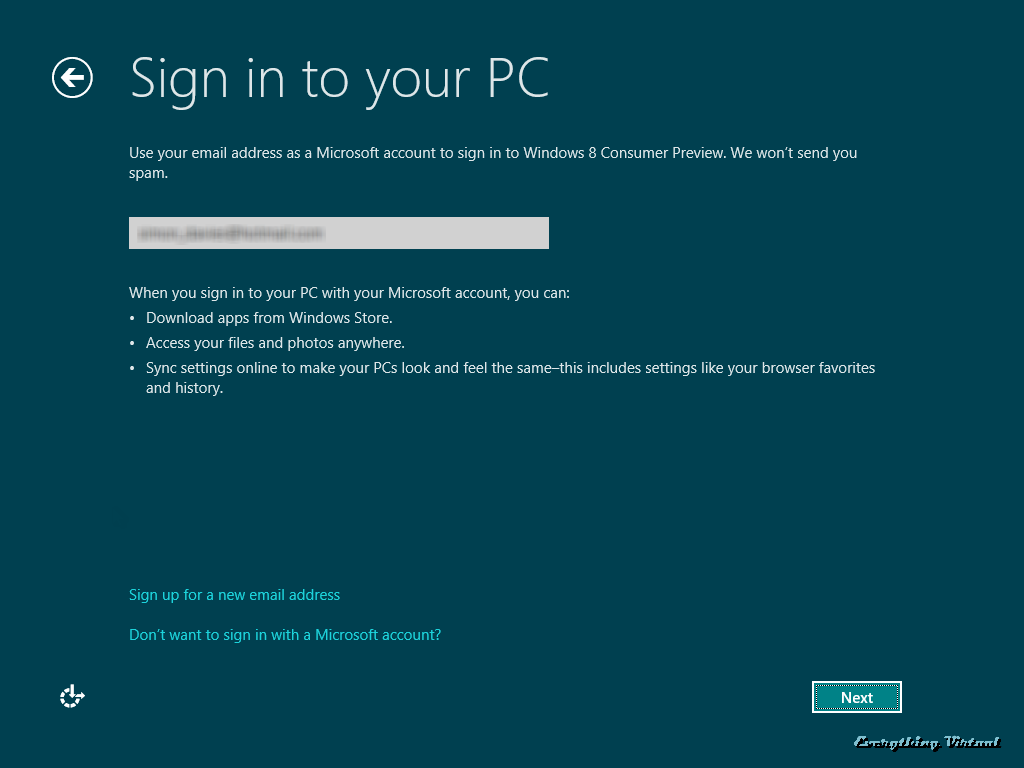

If you have a Windows Live ID use that to log in to your PC, click Next

28

Type your Live ID password here, click Next

29

Enter the required information here, doing this correctly will mean you get three SMS messages sent to your phone, click Next

30

Hey presto, the installation completes successfully.

One word of caution when proceeding beyond this point, VMware advise that instead of allowing the VMware Tools installation to install the SVGA drivers you should actually customise the installation and not install them, allow the OS to just install it’s own preferred driver as installing the VMware SVGA driver can cause issues (the same thing has occurred previously with Windows 7 so it’s not entirely new).
