Microsoft SCCM 2012 R2 – Pre-Requisite Installs Part 3

In the first two posts on this multi-part blog post about installing Microsoft SCCM 2012 R2 I covered the pre-requisites for Active Directory and SQL Server (Reporting Services). In Part 3 I am covering the requirements for the Windows OS for the SCCM 2012 R2 Site Server.

Windows Server 2012 R2 Adding SCCM 2012 Requirements – Roles, Features and ADK


From Server Manager choose the Add Roles and Features.


Click Next


As we are using the default here click Next


As we are using the default here click Next


Add Web Server (IIS) and Windows Server Update Services, accept any prompts to install additional features. Click Next


Install the following features, accept any additional features that are required.

.NET Framework 3.5 Features (Install all features)

.NET Framework 4.5 Features (Install all features)

Background Intelligent Transfer Service (BITS)

Remote Differential Compression

Click Next


Click Next

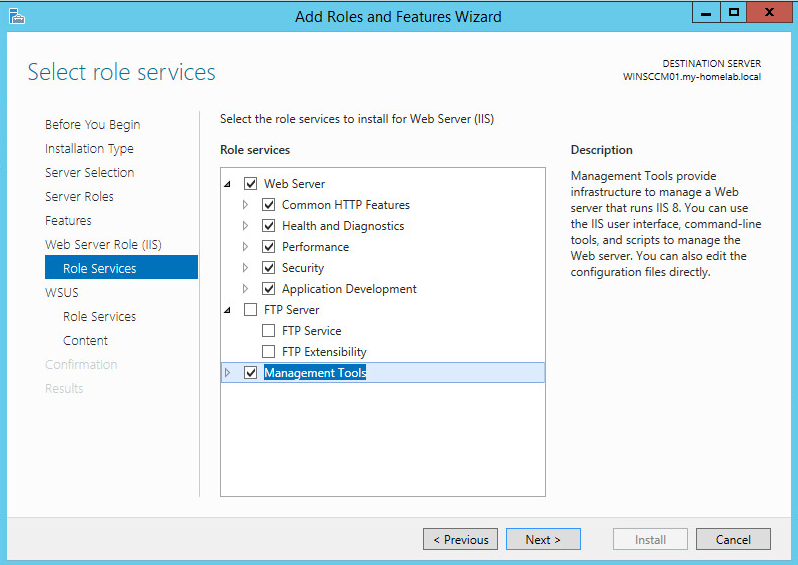

Add the following IIS components.

Common HTTP Features

Default Document

Directory Browsing

HTTP Errors

Static Content

HTTP Redirection

Application Development

NET Extensibility 3.5.

NET Extensibility 4.5

ASP

ASP.NET 3.5

ASP.NET 4.5

ISAPI Extensions

ISAPI Filters

Health and Diagnostics

HTTP logging

Logging tools

Request Monitor

Tracing

Management Tools

IIS Management Console

IIS Management Scripts and Tools

Management Service

Performance

Static Content Compression

IIS 6 Management Compatibility

IIS 6 Metabase Compatibility

IIS 6 WMI Compatibility

IIS 6 Scripting Tools

IIS 6 Management Console

Security

Request Filtering

Basic Authentication

IP and Domain Restrictions

URL Authorization

Windows Authentication




Next install WSUS, click Next


Because the SQL server isn’t being installed locally I am going to use the WID Database, click Next


Define where you’re going to save the WSUS Data, click Next


Use the Specify an alternate source path option to select the path, if it’s from a DVD use drivepath\Source\sxs\ as the location, click Install


Once Complete click Close


There will be a message advising that there is a requirement to configure the WSUS instance once installed. Ignore the message and go on to install the ADK


Download the ADK from http://www.microsoft.com/en-gb/download/details.aspx?id=39982

Run the file to start the installation process.

You may be prompted to install .Net Framework 4.5, restart the server when prompted.


Accept the default location and click Next

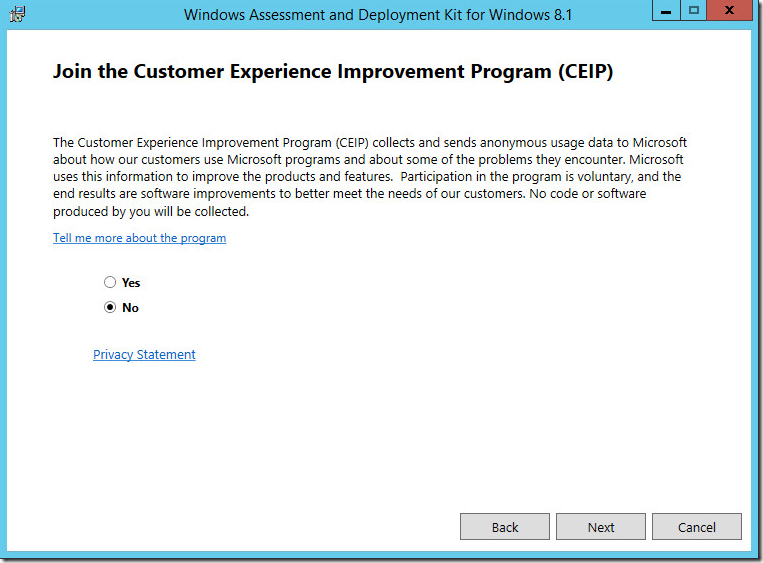

Click Next


Read the License Agreement and click Accept


Install the following components only and then click Install

  • Deployment Tools
  • Windows PreInstallation Environment (Windows PE)
  • User State Migration Tool (USMT)




Wait a couple of minutes for the installation to complete.


Click Close.

Well all the pre-requisites have now been installed. Coming up shortly the SCCM 2012 R2 Installation.

Simon
