Installing the Home Lab – Installing vCenter 5.5 on Windows 2012R2

1st December 2013 0 By Simon

This post will detail all the steps required to install vCenter 5.5a on to a Windows 2012R2 guest machine, I should add that at the time of writing 2012R2 isn’t on the supported OS list and that there is an additional step that needs to be done to ensure that the installation succeeds first time.

You will need to get a copy of OCSetup.exe because for some insane reason Microsoft dropped the use of it in Windows 2012R2 (it’s present in 2012). As a side note you can also use a copy of the file from Windows 2008R2 if you don’t have 2012 available. Once you have a copy place it in the C:\Windows\System32 folder.

29-09-2013 00-06-5129-09-2013 00-08-0229-09-2013 00-09-04

Next up you need to ensure that you have the 64bit version of the SQL Native Client for the version of SQL you’re running for the installation. In my case I am running SQL 2012 but here are some links to both SQL 2008 and SQL 2012 Native Clients.

Microsoft SQL Server 2012 native 64bit client

Microsoft SQL Server 2008 R2 SP2 native 64bit client

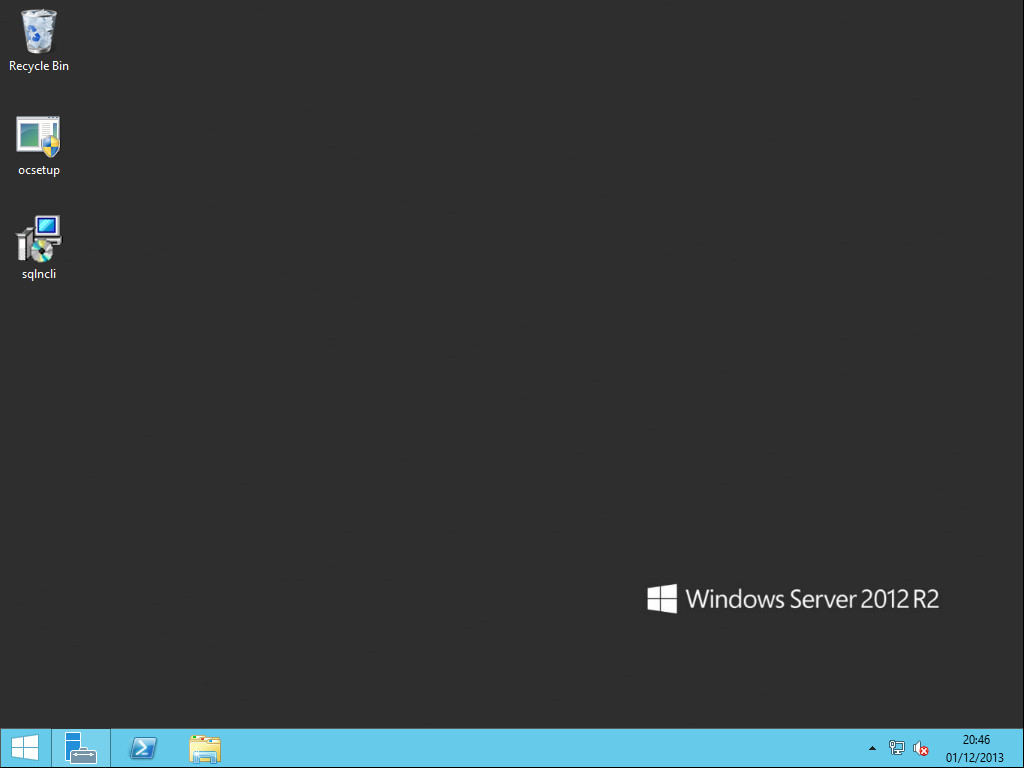

Once downloaded I placed it on my desktop for easy use.

28-09-2013 20-49-12

SQL 2012 Native Client Installation

Now it’s time to install the SQL Native client and configure the ODBC settings.

01-12-2013 15-31-51 01-12-2013 15-32-07

01-12-2013 15-32-26 01-12-2013 15-32-37

01-12-2013 15-32-51 01-12-2013 15-37-50

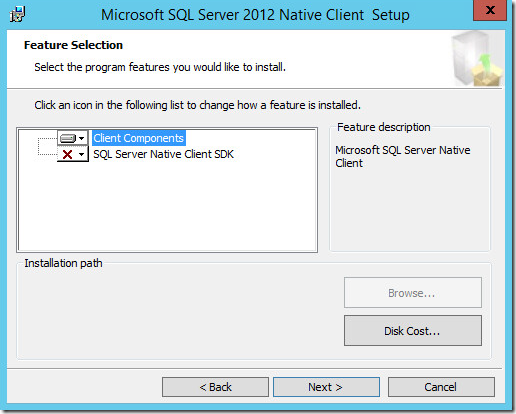

Installation is straight forward, accept all the defaults and click finish to install.

01-12-2013 15-39-47

Go to Search and type in odbc, you need to run the 64bit version.

01-12-2013 15-41-03 01-12-2013 15-41-16

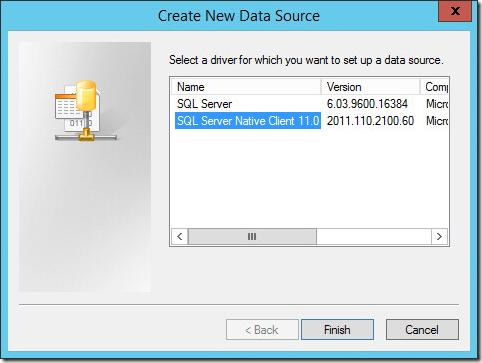

Choose the System DSN tab and click Add, choose the SQL Server Native Client driver and click Finish

01-12-2013 15-42-17

Enter the Name, Description and choose the SQL Server from the drop down list, click Next

 01-12-2013 15-42-51

Use SQL Server Authentication and use the Login ID and Password used when we created the vCenter and VUM databases in an earlier post, click Next

 01-12-2013 15-43-20

Click Next

01-12-2013 15-44-17

Click Finish

01-12-2013 15-44-45

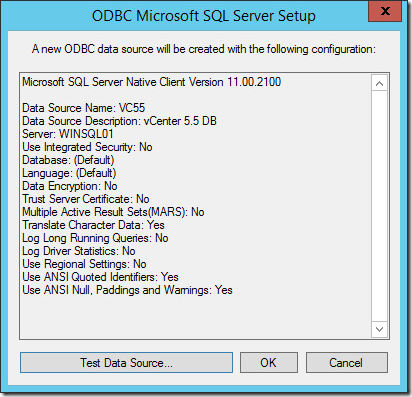

Click Test Data Source

01-12-2013 15-44-57

Click OK

01-12-2013 15-44-45

Click OK

01-12-2013 15-45-32

Click OK

vCenter 5.5. Installation

I am installing vCenter Server 5.5.0a that was launched recently to fix the issue with Active Directory authentication failing when the SSO was installed on to a Windows 2012 Server, the fix prior to this release was to use a patched idm.dll file issued by VMware (more information can be found at http://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2060901).

To start the installation mount your ISO image and run the autorun.exe file.

01-12-2013 15-48-44

To make things easy I have gone for the Simple Install, click Install

01-12-2013 15-49-05

01-12-2013 15-49-26

Click Next

01-12-2013 15-49-56

Click I accept the terms in the License Agreement then click Next

01-12-2013 15-50-34

Click Next

01-12-2013 15-51-09

Enter your password twice and click Next

01-12-2013 15-53-46

Click Next

01-12-2013 15-54-06

Click Next

01-12-2013 15-54-23

Click Next

01-12-2013 15-54-38

Click Install

01-12-2013 15-55-10

01-12-2013 16-52-02

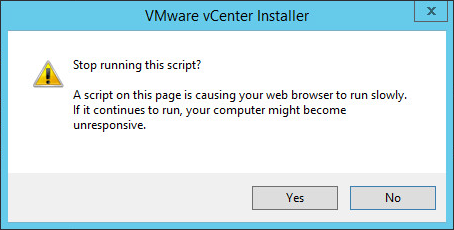

After the SSO installation completes you may be prompted with the above screen, click No

01-12-2013 16-09-12

01-12-2013 16-53-43

01-12-2013 16-57-29

The Web Client and Inventory Service installations complete without any user input

01-12-2013 16-52-02

Click No

01-12-2013 16-59-42

01-12-2013 17-06-06

You can either enter your license key now or install the 60 Day evaluation, click Next

01-12-2013 17-06-36

Choose Use an existing supported database and click the entry in the drop down, click Next

01-12-2013 17-07-15

Enter the password and click Next

01-12-2013 17-28-29

Use either the local system account or enter another account name, click Next

01-12-2013 17-54-50

Click Next

01-12-2013 17-55-02

As this is a small home lab installation I have accepted the Small Inventory Size, click Next

01-12-2013 17-55-29

Click Install

01-12-2013 18-04-48

Click OK

Configuring vSphere Web Client

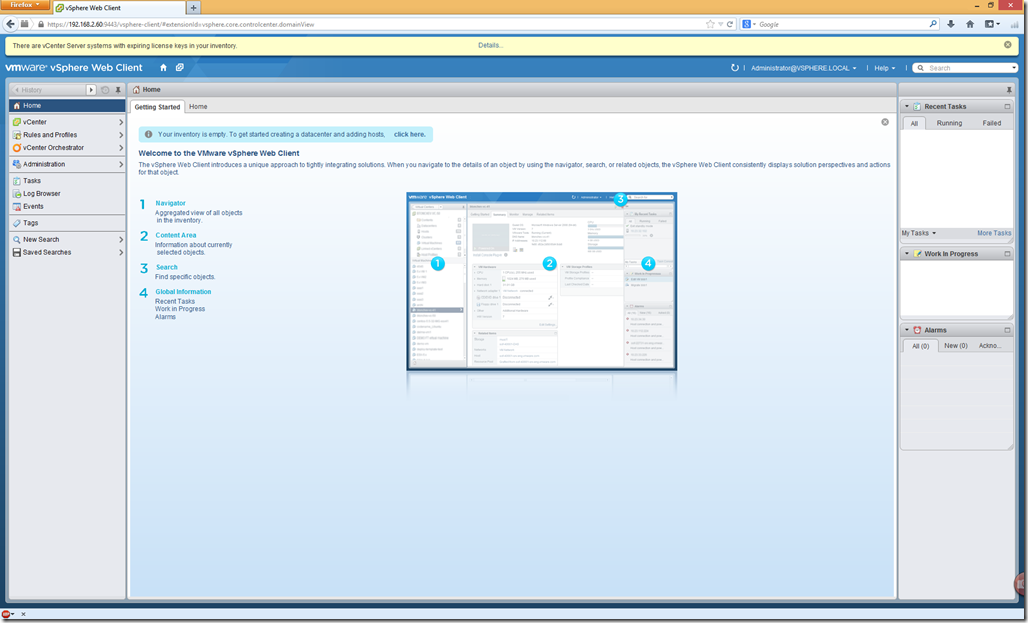

Launch a browser to https://nameofserver:9443/vsphere-client/ to launch the web client, log in with administrator@vsphere.local and the password used earlier during the installation

29-09-2013 02-45-16

Click Administration

29-09-2013 02-45-37

Click Configuration and on the Identity Sources tab click the green +

29-09-2013 02-45-58

Choose Active Directory (Integrated Windows Authentication), click Next

29-09-2013 02-46-14

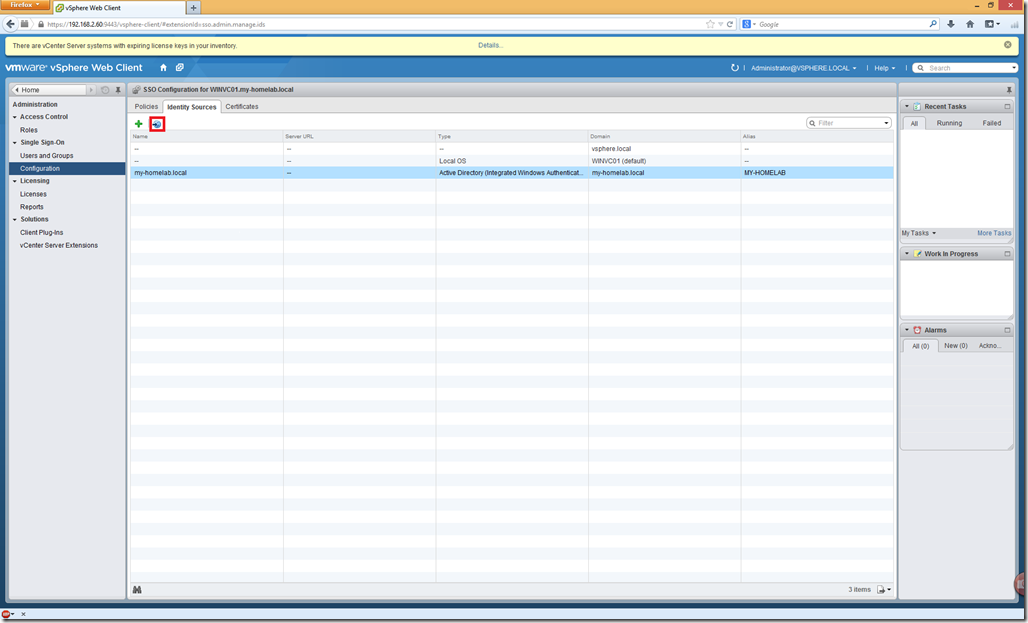

We now need to change the default domain to the newly added Active Directory domain.

29-09-2013 02-46-14

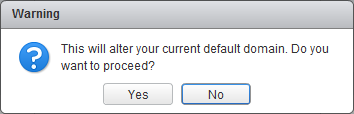

Highlight the Active Directory domain and click the little world icon next to the green + sign, you will receive the following warning.


Click Yes

29-09-2013 02-48-17

Next we need to add the required users\groups to vCenter. Click the Groups and highlight the Administrators group, in the Group Properties in the bottom half of the screen click the Add Member button

29-09-2013 02-48-58

29-09-2013 02-49-52

Choose the Active Directory domain and choose the required user and click OK

01-12-2013 18-36-13

Grant the required role and click OK

Finally we need to grant permissions to the vCenter server, click Home

01-12-2013 21-26-08

Click vCenter

01-12-2013 21-26-19

Click vCenter Servers

01-12-2013 21-26-34

Click the Permissions tab and add the user\group to the Administrator Role on the vCenter Server


Logout the Administrator@vsphere.local user.

29-09-2013 02-50-18

Log in to vCenter using either the Thick or Web Client using your Active Directory User.

In this post I have covered installing the SQL Native Client and the vCenter 5.5 Simple Installation, in the next post I will cover Creating Data Centers and Adding Hosts
